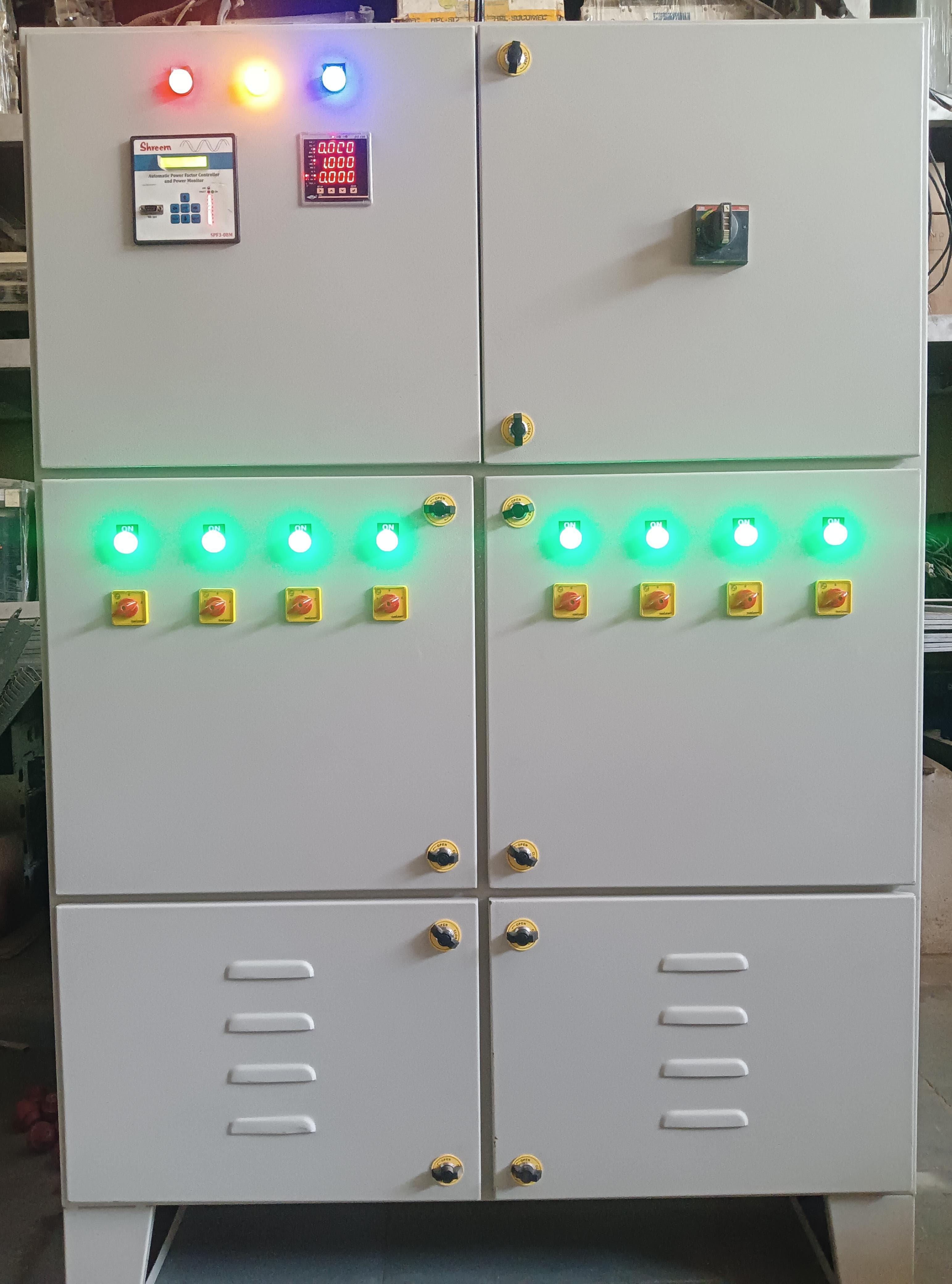

150 kVAR APFC PANEL WITH COPPER BUS BAR WITH 250 AMP MAIN WITH 8 STAGE
150 kVAR APFC PANEL WITH COPPER BUS BAR WITH 250 AMP MAIN WITHÂ 8 STAGE
TECHNICAL SPECIFICATIONS:
PANEL RATING: 150 KVAR
MAIN INCOMER: 250A, 4-POLE MCCB (MOULDED CASE CIRCUIT BREAKER)
CONTROL TYPE: AUTOMATIC POWER FACTOR CORRECTION (APFC) USING MICROPROCESSOR-BASED RELAY/CONTROLLER
NUMBER OF STAGES: 8 STEPS/STAGES
CAPACITOR TYPE: HEAVY-DUTY, DETUNED/REACTOR-BASED (OPTIONAL), DRY-TYPE/OIL-FILLED (AS PER REQUIREMENT)
BUS BAR MATERIAL: ELECTROLYTIC GRADE COPPER BUS BARS, TINNED/PAINTED WITH HEAT-SHRINK INSULATION
BUS BAR RATING: SIZED FOR 250A CURRENT CARRYING CAPACITY WITH PROPER DERATING FACTOR
ENCLOSURE: POWDER-COATED MS CRCA SHEET, DUST AND VERMIN PROOF, INDOOR TYPE (IP42/IP52 STANDARD OR HIGHER ON REQUEST)
COOLING: NATURAL AIR COOLED (OPTIONAL FORCED COOLING FOR HIGH AMBIENT CONDITIONS
