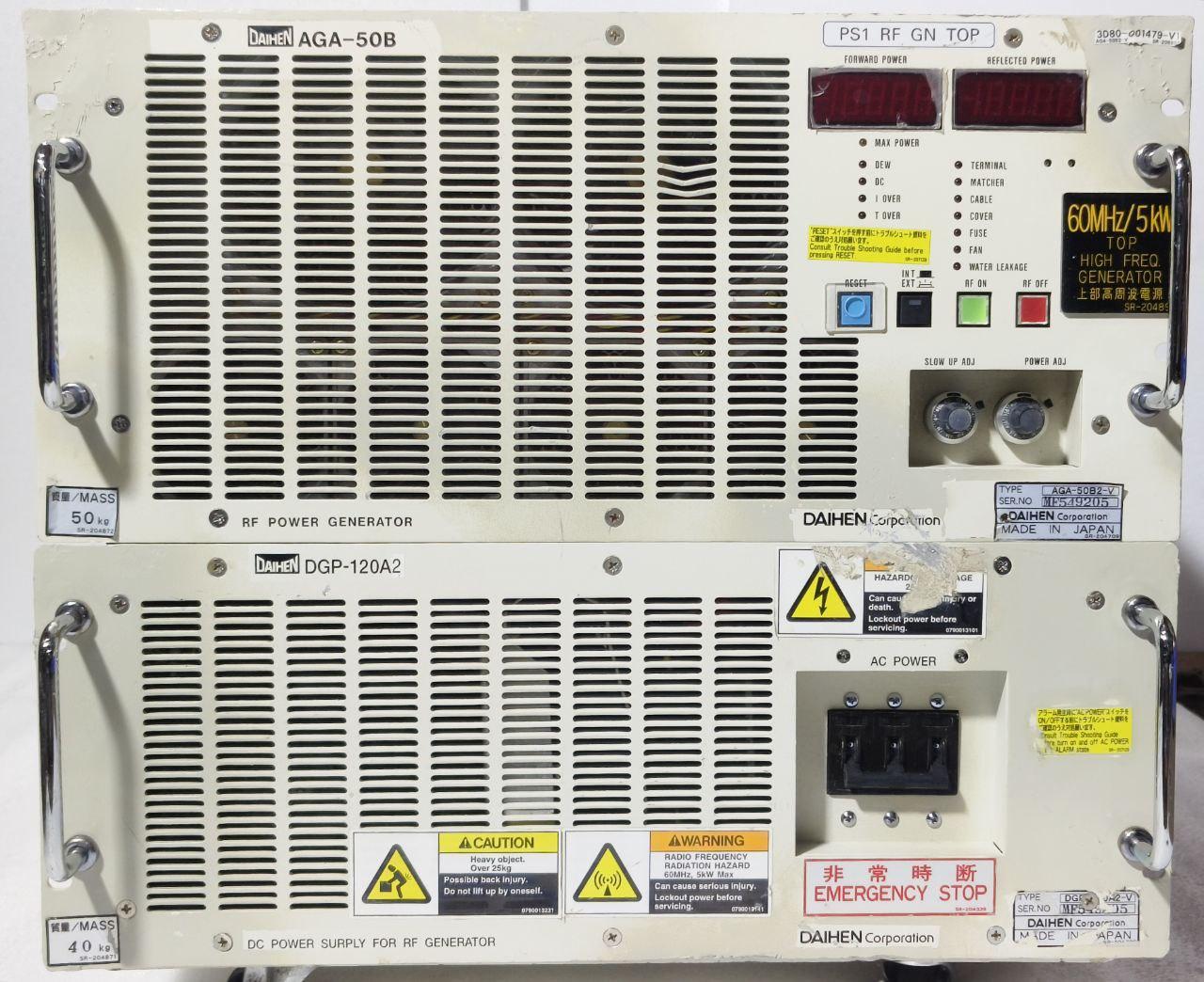

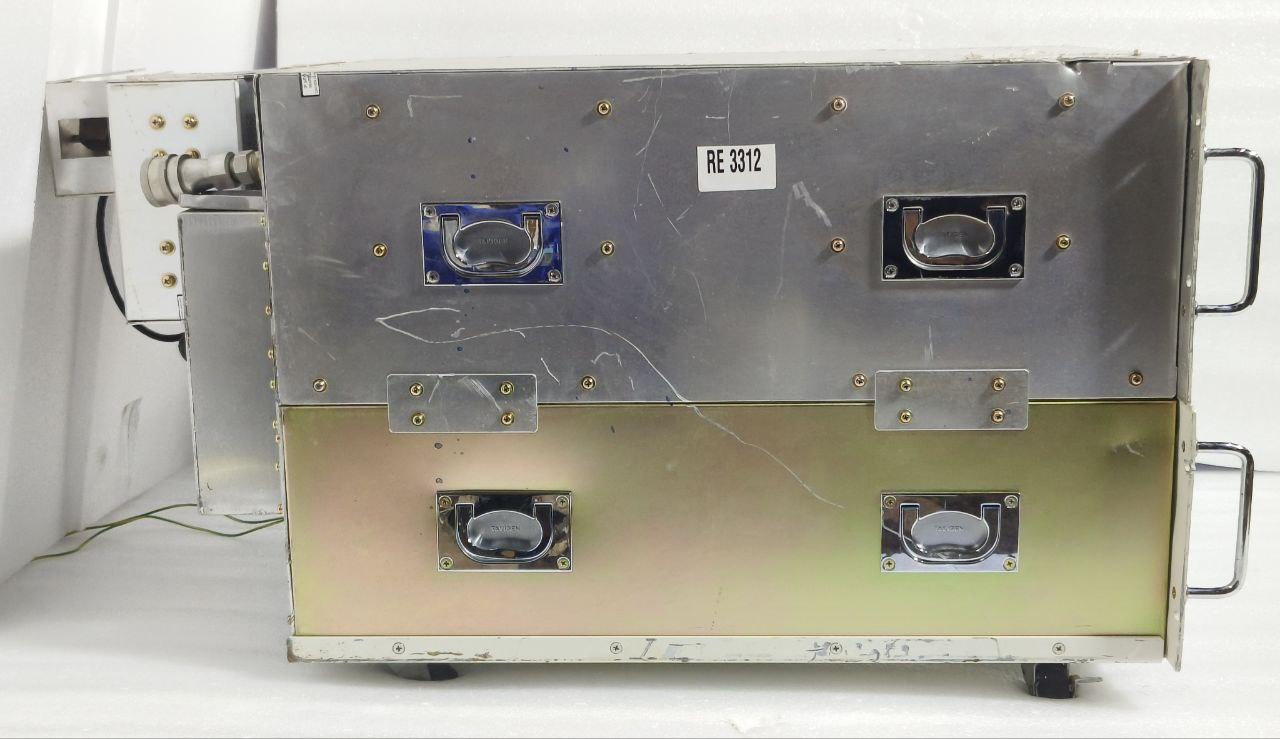

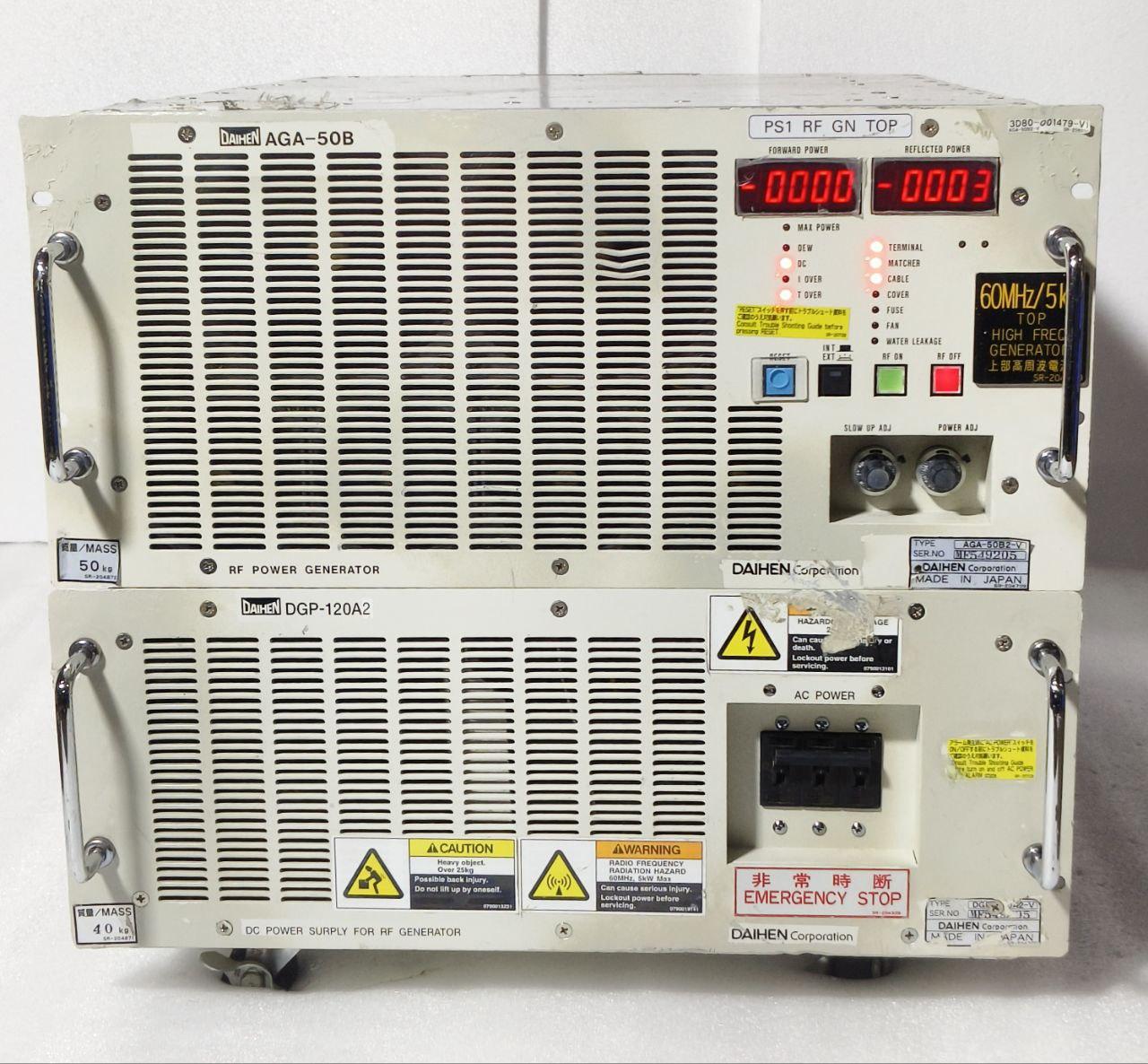

DAIHEN AGA-50B2-V RF GENERATOR & DGP-120A2-V DC POWER SUPPLY | 60MHZ 5000W

DAIHEN AGA-50B2-V RF GENERATOR & DGP-120A2-V DC POWER SUPPLY | 60MHZ 5000W | FREE SHIP

PRODUCT SPECIFICATIONS:

• BRAND: DAIHEN CORPORATION

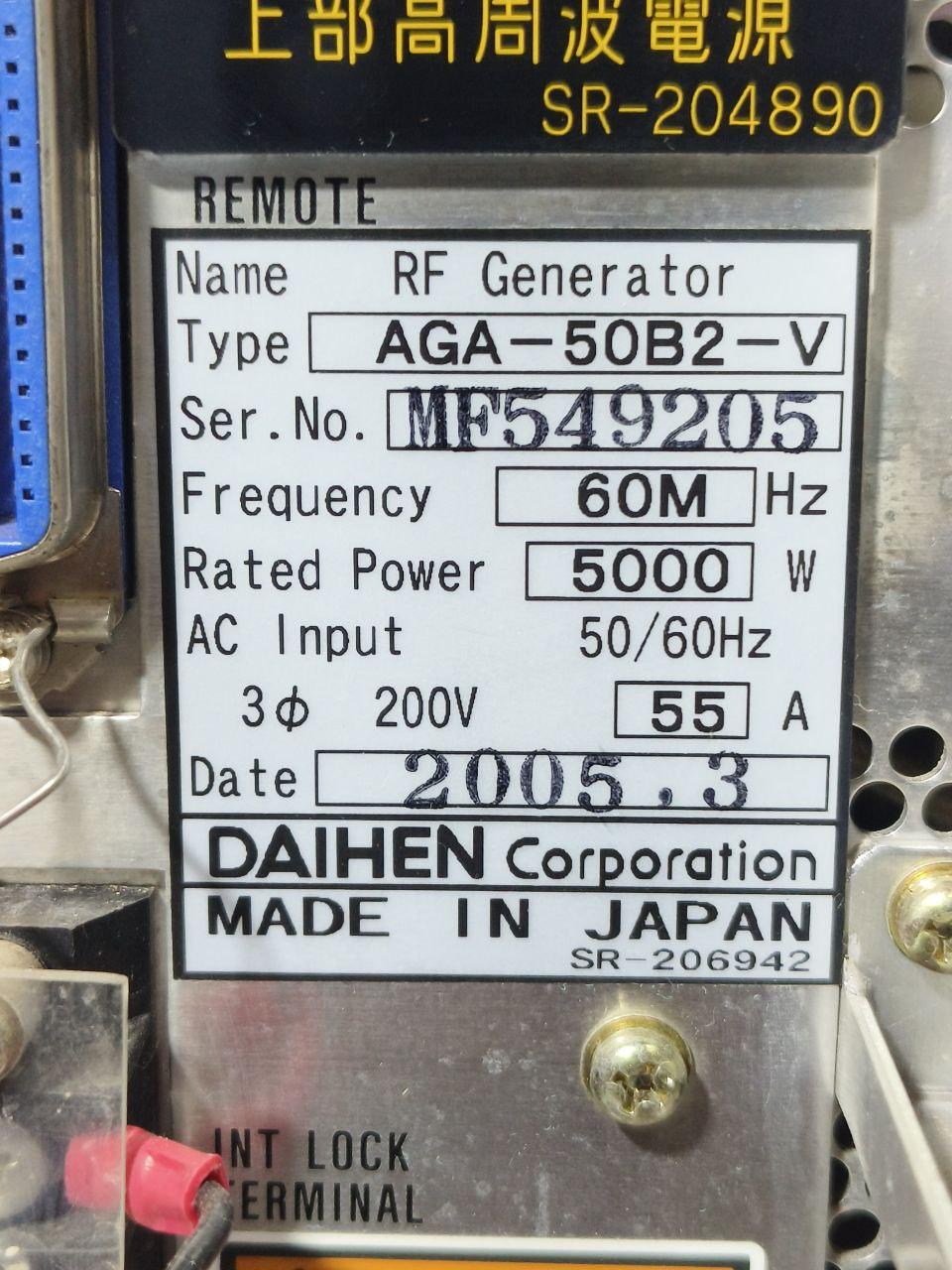

• MPN 1 (GENERATOR): AGA-50B2-V

• MPN 2 (POWER SUPPLY): DGP-120A2-V

• TYPE: RF GENERATOR / DC POWER SUPPLY STACK

• OUTPUT FREQUENCY: 60 MHZ

• OUTPUT POWER: 5000W (5 KW)

• COMPATIBILITY: TOKYO ELECTRON (TEL) SEMICONDUCTOR EQUIPMENT



TECHNICAL SPECIFICATIONS:

• INPUT VOLTAGE (DGP-120A2-V): 208V AC, 3-PHASE, 50/60 HZ.

• INPUT CURRENT: APPROXIMATELY 55A.

• OUTPUT IMPEDANCE: 50 OHMS.

• COOLING: HYBRID WATER/AIR COOLING (REQUIRES EXTERNAL CHILLER/AIRFLOW FOR 5KW OPERATION).

• PHYSICAL DIMENSIONS: APPROX. 48 X 50 X 87 CM.

• WEIGHT: APPROXIMATELY 92 KG (203 LBS)
