TERASAKI XS800CS TEMBREAK XMD 6 MOTOR OPERATOR 800A 690V AC

TERASAKI XS800CS

TEMBREAK XMD 6 MOTOR OPERATOR 800A 690V AC

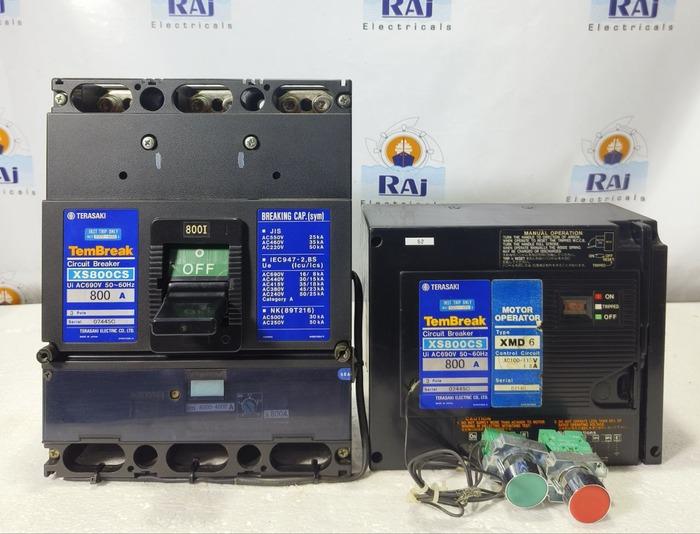

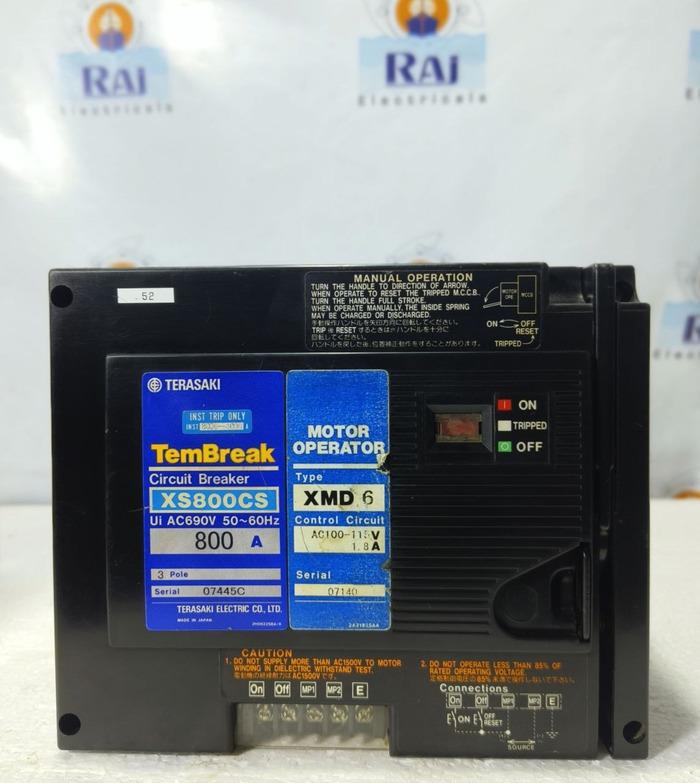

FEATURING! THE  TERASAKI XMD 6 MOTOR OPERATOR IS A MOTOR OPERATOR FOR THE TERASAKI XS800NS 800A CIRCUIT BREAKER.

PRODUCT SPECIFICATIONS:

●   BRAND: TERASAKI

●   MODEL: XS800CS

●   SERIES: TEMBREAK

●   PRODUCT NAME: MOTOR OPERATOR

●   TYPE: XMD 6

●   RANGE OF PRODUCT: TEMBREAK XS800CS

●   AC690V 50~60HZ 800 A

●   CONTROL CIRCUIT: AC100-115V 1.8A

KEY FEATURES:

●   WIDE RANGE OF CURRENT AND TIME ADJUSTMENTS

●   TRIP/NON TRIP OPTION

●   PRE TRIP ALARM FUNCTION

●   LOCAL/REMOTE INDICATION

●   POSITIVE CONTACT INDICATION

●   ACCESS TO O.C.R.

THE MAXIMUM RATED CONTROL VOLTAGE FOR A TERASAKI CIRCUIT BREAKER IS AC240V. FOR HIGHER VOLTAGES, A STEP-DOWN TRANSFORMER IS NEEDED.

MADE IN JAPAN

PRODUCT CONDITION: PRE-OWNED
